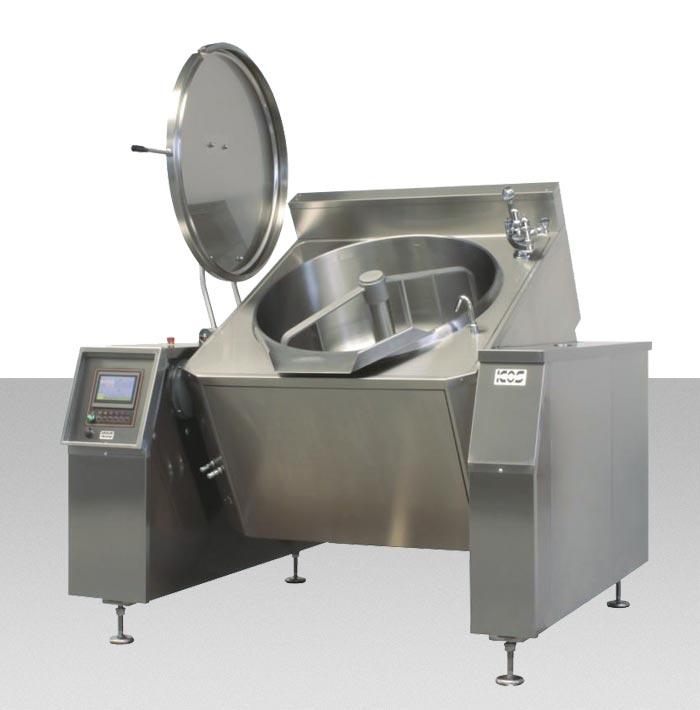

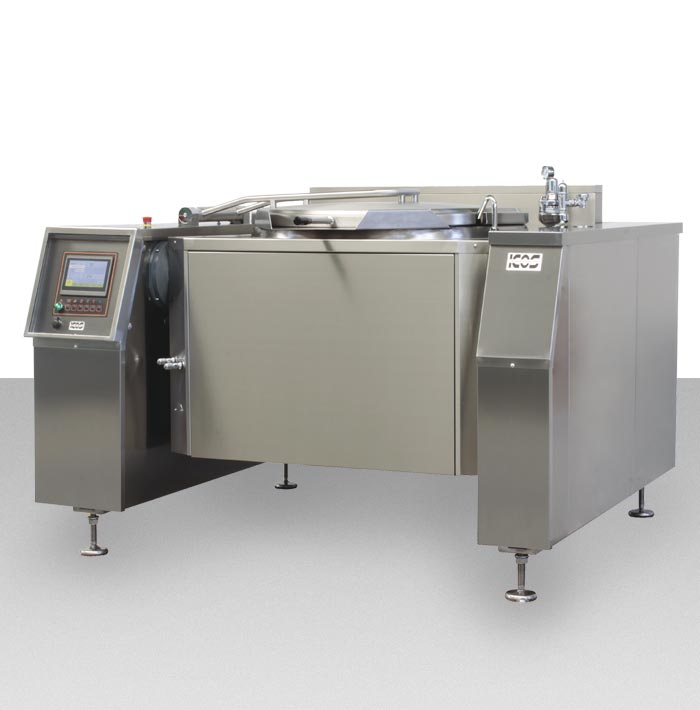

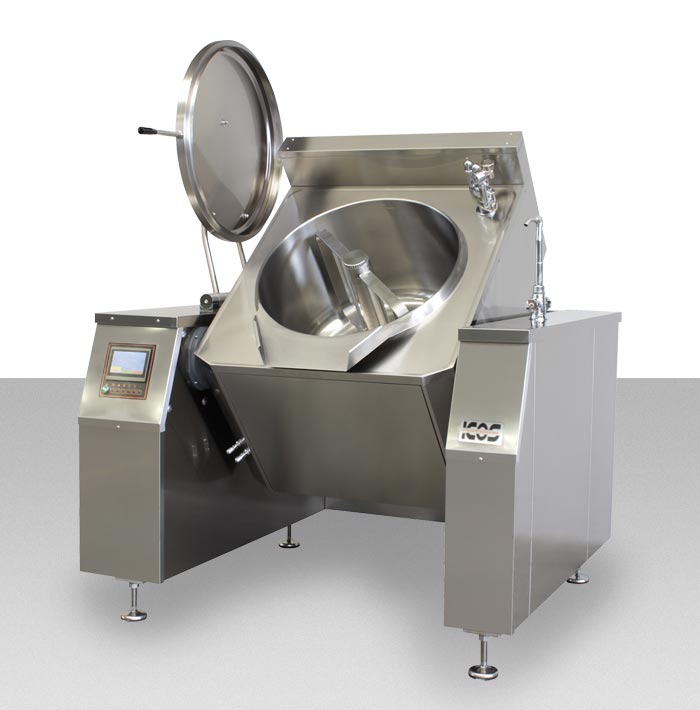

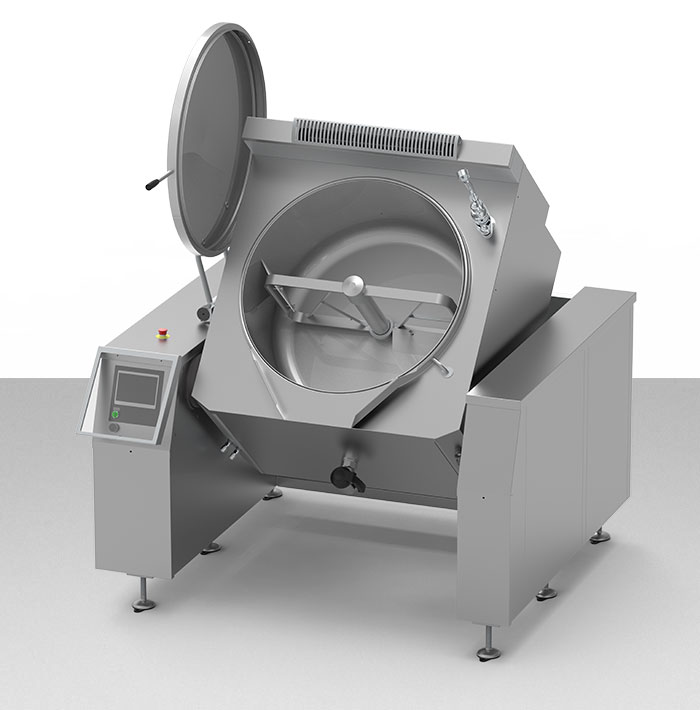

Automatic tilting pan at constant level with mixer – PTBS MODEL – from 100 to 500 lt

Appliance of innovative design, combining the advantages of cooking the product with continuous stirring and discharging the food into receiving trolleys with the discharge spout always at a constant height from the ground. The mixing blades can be customized to suit the types of product to be processed.
The automation of the cooking parameters improves the final quality of the product and considerably reduces the kitchen personnel required.

TECHNICAL FEATURES

  • Cooking tank with bottom in AISI 316 polished stainless steel and walls in AISI 304 stainless steel
  • Jacket with bottom and walls in AISI 304 stainless steel
  • Balanced lid in AISI 304 stainless steel with heat resistant handle
  • Automatic tilting by electric or hydraulic actuator mechanism and automatic block in case of damage
  • Down and up button.
  • Electric supply: 400V – 3N – 50Hz
  • Management with dedicated PLC and serial monitor
  • Stainless steel frame
  • Thermal insulation assured by high density ceramic fibre 64/128
  • Panels in stainless steel, fine satin finish
  • The pan is provided with a mixer with adjustable speed and possibility to automatic reverse. It built with radial arms or scraping blades in stainless steel and insert in ceramic teflon. The mixer can be easly removed for cleaning or maintenance.
DATA SHEET IT-EN
DATA SHEET ES-EN
DATA SHEET FR-DE

Treatable foods

  • Thick soups
  • Thin soups
  • Pasta
  • Rice
  • Sauces
  • Various types of boiled foods
  • Broths
  • Dairy-based products
  • Boiled vegetables
  • Creams
  • Jams
  • Mashed potatoes and other legumes

Processing type

  • Boiling
  • Mixing

Accessories

  • Draining tap 2″ AISI 316 clamp attack
  • Butterfly valve outlet 2,5” ISO DN50 AISI304
  • Drain spout filter

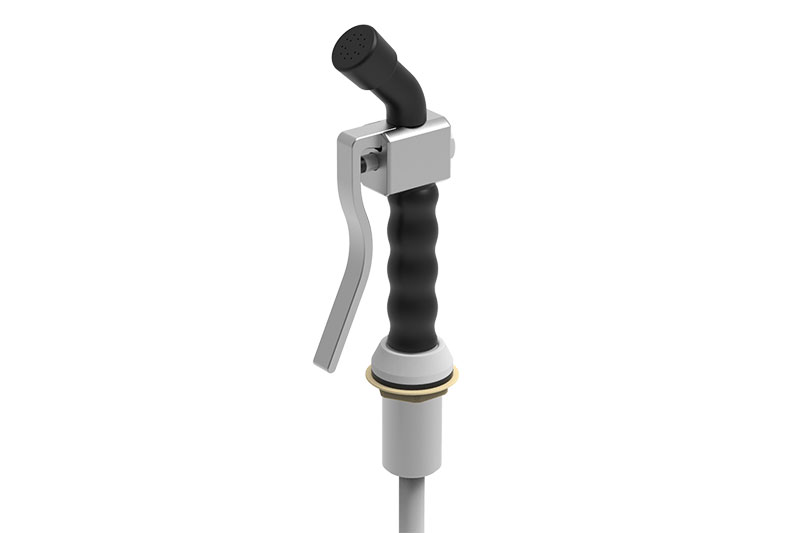

  • Hose shower
  • Insulated cover
  • Automatic water filling in jacket with probe
  • Automatic air venting
  • Tilting thermal trolley
