Automatic tilting bratt pan at constant level with mixer – BRP MODEL2019-04-05T16:28:53+00:00

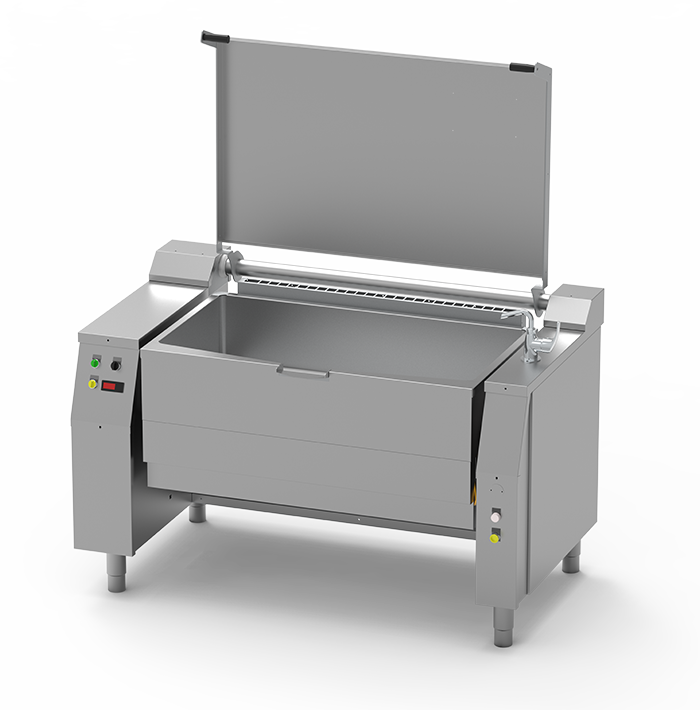

Automatic tilting bratt pan at constant level with mixer   – MOD. BRP MODEL

Appliance of innovative design, combining the advantages of cooking the product with continuous stirring and discharging the food into receiving trolleys with the discharge spout always at a constant height from the ground. The mixing blades can be customized to suit the types of product to be processed.
The automation of the cooking parameters improves the final quality of the product and considerably reduces the kitchen personnel required.
Equipped with electronic controls with a PLC monitor and touch screen.

TECHNICAL FEATURES

  • Cooking tank with bottom in AISI 316/L stainless steel polished in compound thickness 12+3mm and walls in AISI 304 stainless steel
  • It has a perimeter with condense return in AISI 304 stainless steel with heat resistant handle
  • Stainless steel frame
  • Thermal insulation assured by high density ceramic fibre 64/128
  • Panels in stainless steel, fine satin finish
  • Automatic tilting at constant level with hydraulic drive and automatic block in case of damage
  • Electric supply: 400V 3N 50Hz
  • Management with dedicated PLC and serial monitor
  • The pan is provided with a mixer with adjustable speed and possibility to automatic reverse. It built with radial arms with scraping blades in stainless steel and insert in ceramic teflon. The mixer can be easly removed for cleaning or maintenance.
DATA SHEET

Treatable foods

  • Browned
  • Ragu / Pasta sauces
  • Rice
  • Stew
  • Polenta (cornmeal mush)
  • Caramel
  • Vegetable stew

Processing type

  • Boiling
  • Braising
  • Mixing

Accessories

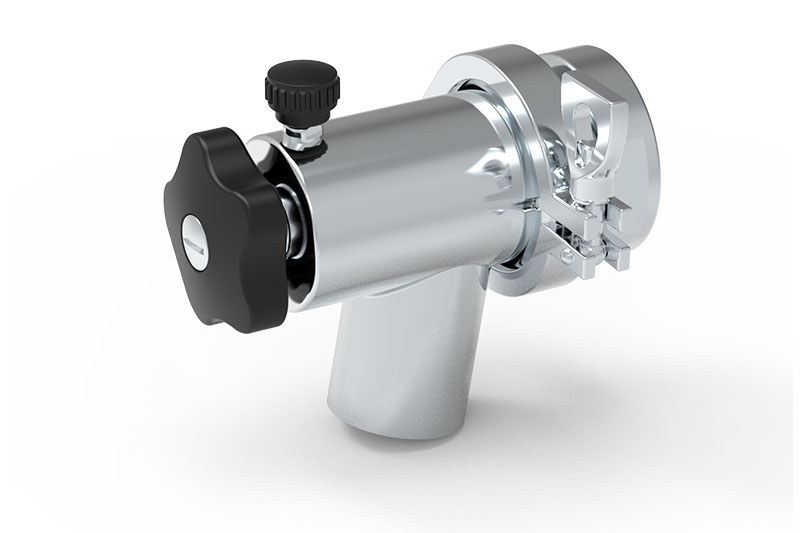

  • Draining tap 2″ AISI 316 clamp attack

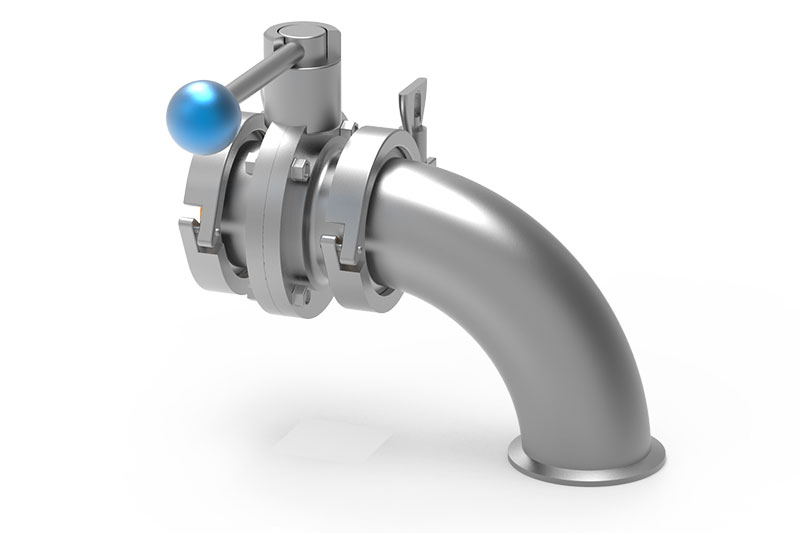

  • Butterfly valve outlet 2,5” ISO DN50 AISI304
  • Drain spout filter
  • Hose shower
  • Insulated cover
  • Automatic water filling in jacket with probe
  • Automatic air venting
