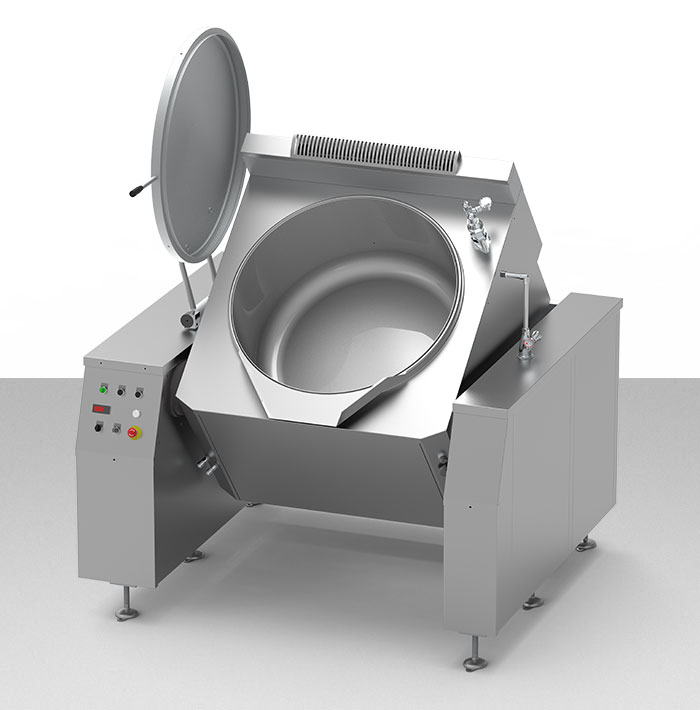

Automatic tiltin pan discharge on constant level – PTBL MODEL – from 100 to 500 lt

Appliance of innovative design, combining the advantages of cooking the product with continuous stirring and discharging the food into receiving trolleys with the discharge spout always at a constant height from the ground.
The automation of the cooking parameters improves the final quality of the product and considerably reduces the kitchen personnel required.

TECHNICAL FEATURES

  • Cooking tank with bottom in AISI 316 polished stainless steel and walls in AISI 304 stainless steel
  • Jacket with bottom and walls in AISI 304 stainless steel
  • Balanced lid in AISI 304 stainless steel with heat resistant handle
  • Stainless steel frame
  • Thermal insulation assured by high density ceramic fibre 64/128
  • Panels in stainless steel, fine satin finish
  • Automatic tilting at constant level with hydraulic drive and automatic block in case of damage
  • Electric supply: 400V 3N 50Hz
DATA SHEET

Treatable foods

  • Thick soups
  • Thin soups
  • Pasta
  • Rice
  • Sauces
  • Various types of boiled foods
  • Broths
  • Dairy-based products
  • Boiled vegetables

Processing type

  • Boiling

Accessories

  • Draining tap 2″ AISI 316 clamp attack
  • Butterfly valve outlet 2,5” ISO DN50 AISI304
  • Drain spout filter
  • Hose shower
  • Insulated cover
  • Automatic water filling in jacket with probe
  • Automatic air venting
  • Tilting termal trolley

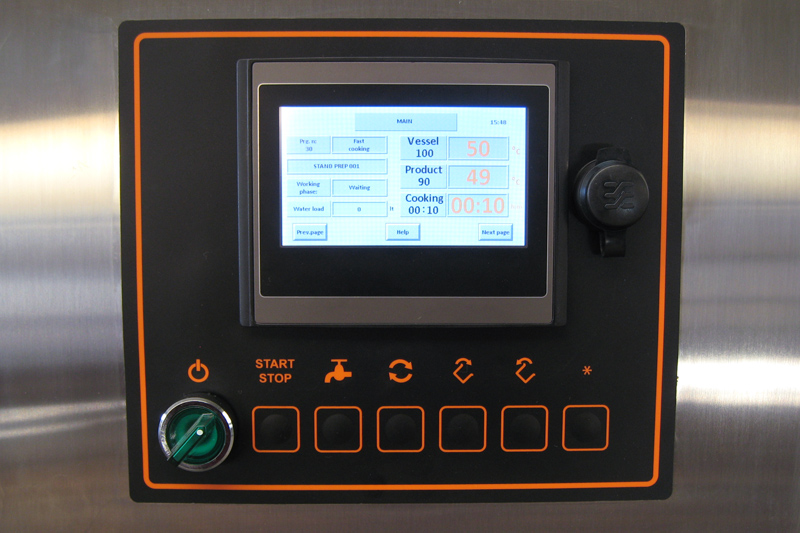

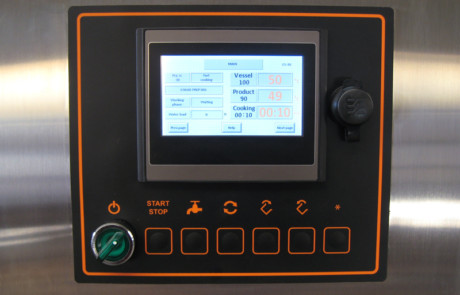

  • PLC Monitor
Request a quote

ACCESSORIES

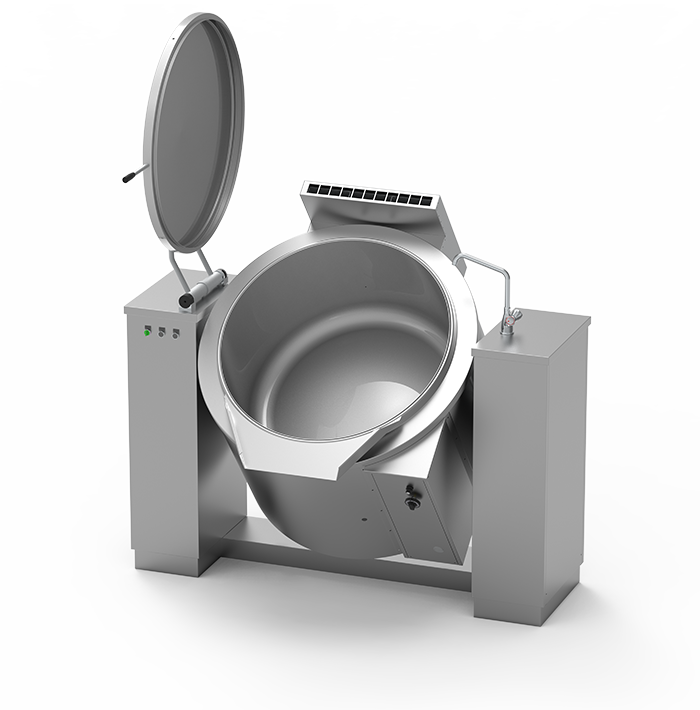

Discover also all other professional tilting pans models
